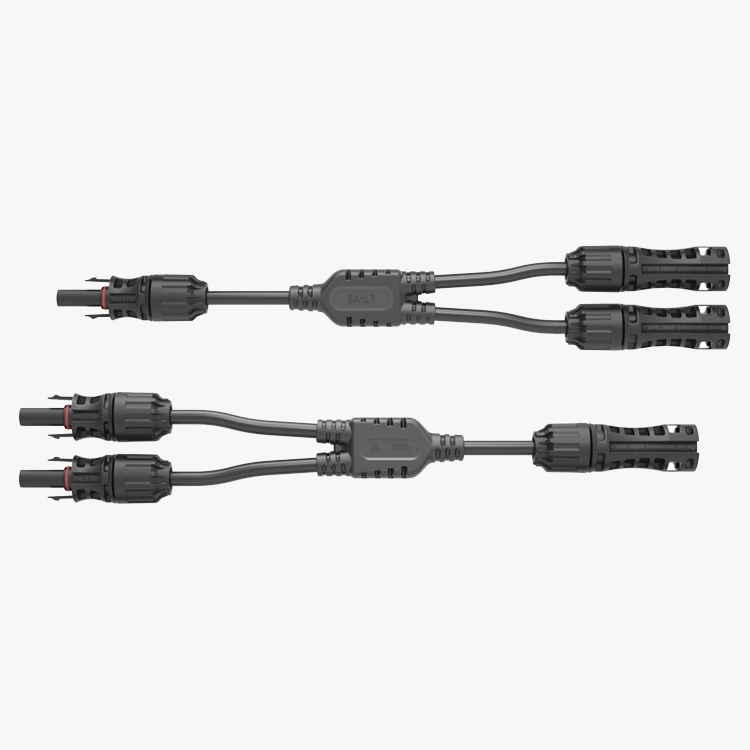

PV-LTY2-N4
1500V 30A 50A MC4 Y Branch Connector，TUV CE Approve
MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.
Feature：
① Flame retardant PPO material
② 30A/50A high current design
③ Capable of connecting 1.5mm2-10mm2 photovoltaic lines
④ Nylon nuts are crack resistant and UV resistant
⑤ IP68 waterproof grade, safer for outdoor use
⑥ Can be interchangeable with 1500V photovoltaic MC4 connectors
Specification：
| Model No | PV-LTY2-N4 |
| Insulation materials | PPO/PC |
| Rated Current | 50A |
| Rated Voltage | 1500VDC |
| Test Voltage | 16KV(50Hz,Imin) |
| Connector contact resistance | <0.5mΩ |
| Metal conductor materials | Copper, tin plated |
| Protection level | IP2X/IP68 |
| security level | II |
| Flame retardant grade | UL94-V0 |
| Upper temperature limit | 110°c |
| withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Temperature range | -40℃ to +85℃ |
| Adapted wire specifications | 1.5~10mm²(16AWG~8AWG) |

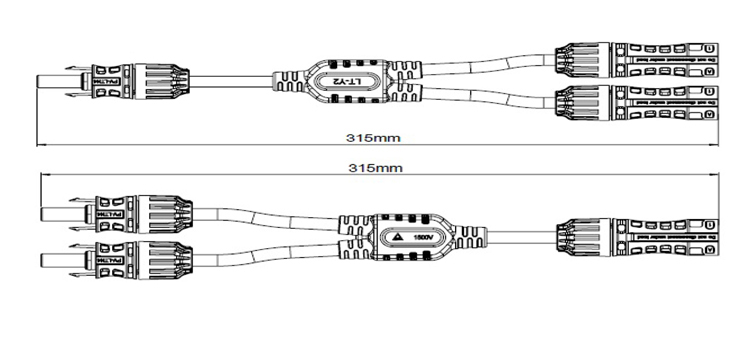

Dimensional drawing：
