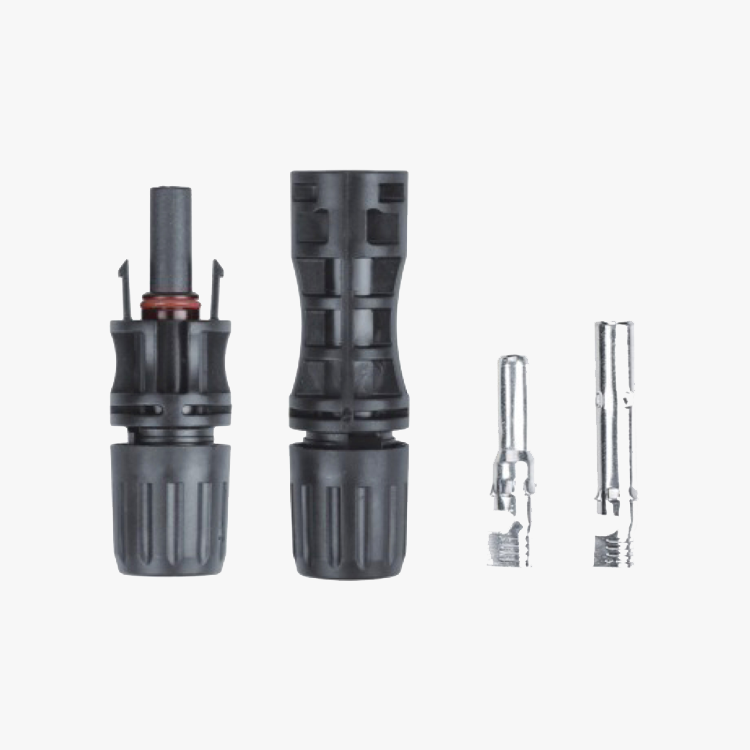

PV-LTM5 1500V 30A 50A Solar Panel MC4 Connector

PV-LTM5

PV-LTM5

1500V MC4 Connector,30A 50A optional,TUV CE approve

MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.

Feature:

① Flame retardant PPO material
② 30A | 50A current optional
③ Capable of connecting 1.5mm2-10mm2 photovoltaic lines
④ Nylon nuts are crack resistant and UV resistant
⑤ IP68 waterproof grade, safer for outdoor use
⑥ Can be interchangeable with 1000V photovoltaic MC4 connectors

Specification:

Model No PV-LTM5
Insulation materials PPE/PC
Rated Current 30A/50A
Rated Voltage 1500VDC
Test Voltage 16KV(50Hz,Imin)
Connector contact resistance <0.5mΩ
Metal conductor materials Copper, tin plated
Protection level IP2X/IP68
security level II
Flame retardant grade UL94-V0
Upper temperature limit 110°c
withdrawal force ≥50N
Insertion force ≤50N
Temperature range -40℃ to +85℃
Adapted wire specifications 1.5~10mm²(16AWG~8AWG)

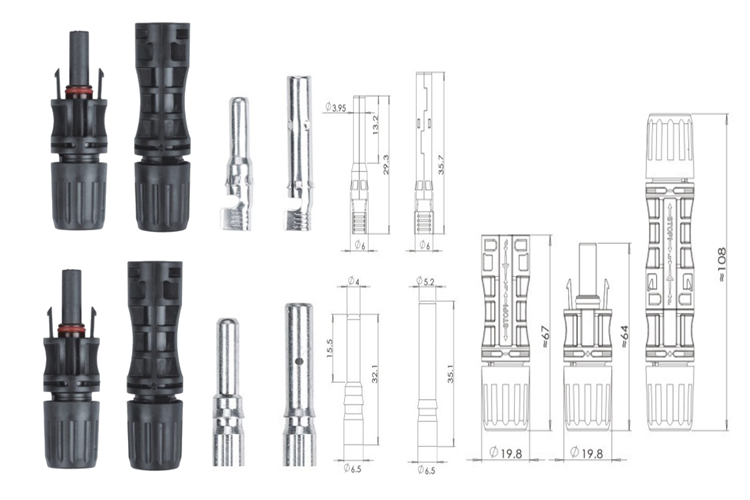

Dimensional drawing:
