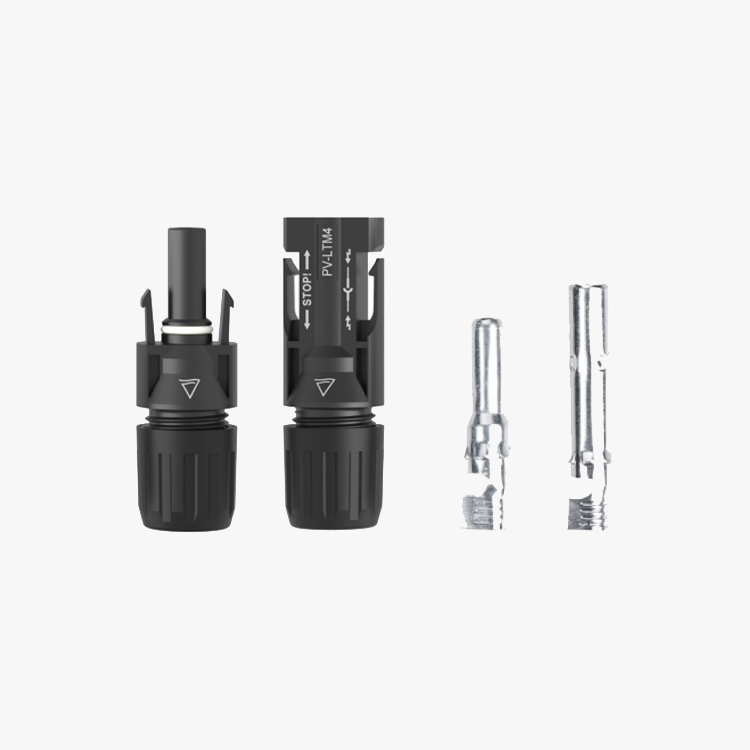

PV-LTS3 1000V 30A Solar Panel MC4 Connector

PV-LTS3

1000V MC4 Connector，30A 50A optional，TUV CE approve

MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.

Feature：

① Flame retardant PPO material
② 30A | 50A current optional
③ Capable of connecting 1.5mm2-10mm2 photovoltaic lines
④ Nylon nuts are crack resistant and UV resistant
⑤ IP68 waterproof grade, safer for outdoor use
⑥ Can be interchangeable with 1500V photovoltaic MC4 connectors

Specification：

Model No	PV-LTS3
Insulation materials	PPO/PC
Rated Current	30A/50A
Rated Voltage	1000VDC
Test Voltage	12KV(50Hz,Imin)
Connector contact resistance	<0.5mΩ
Metal conductor materials	Copper, tin plated
Protection level	IP2X/IP68
security level	II
Flame retardant grade	UL94-V0
Upper temperature limit	110°c
withdrawal force	≥50N
Insertion force	≤50N
Temperature range	-40℃ to +85℃
Adapted wire specifications	1.5~10mm²(16AWG~8AWG)
