Why install 1500V MC4 connectors instead of 1000V?

Why install 1500V MC4 connectors instead of 1000V?

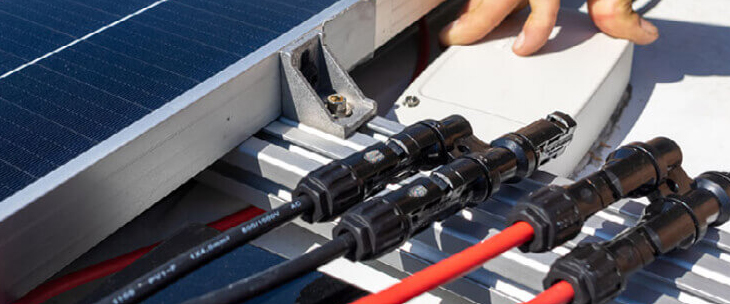

Installing 1500V MC4 connectors instead of 1000V connectors offers several potential advantages, particularly in larger solar PV systems or installations with specific requirements:

  1. Higher Voltage Compatibility: 1500V MC4 connectors are designed to withstand higher voltages, making them suitable for systems with higher voltage configurations. This allows for longer string lengths and reduces the number of combiner boxes or other components required in the system, potentially lowering overall installation costs.
  2. Reduced Current Carrying Requirements: Higher voltage systems typically carry lower current for the same power output, resulting in reduced resistive losses and voltage drop along the cables. This can lead to increased system efficiency and improved performance, especially in large-scale solar installations or installations with long cable runs.
  3. Future-Proofing: Choosing 1500V MC4 connectors future-proofs the installation, allowing for potential system upgrades or expansions without needing to replace connectors. As solar PV technology advances and system voltages increase, having connectors rated for higher voltages ensures compatibility and flexibility for future changes.
  4. Compliance with Industry Standards: In some regions or jurisdictions, regulations or industry standards may recommend or require the use of 1500V-rated connectors for certain types of solar PV installations. Using 1500V MC4 connectors ensures compliance with these standards and regulations, avoiding potential issues during inspections or permitting processes.
  5. Safety Margin: Using connectors with a higher voltage rating provides an additional safety margin against voltage surges or fluctuations, reducing the risk of connector failure or damage due to overvoltage conditions.
  6. Availability and Compatibility: As solar PV systems increasingly adopt higher voltage configurations, the availability and compatibility of 1500V-rated components, including MC4 connectors, are becoming more widespread. Choosing 1500V connectors ensures compatibility with other system components and simplifies sourcing and procurement.

It’s essential to consider factors such as system size, voltage requirements, regulatory compliance, and future expansion plans when deciding whether to use 1500V MC4 connectors instead of 1000V connectors. Consulting with a qualified solar installer or engineer can help determine the most suitable connector options for your specific application and requirements.
