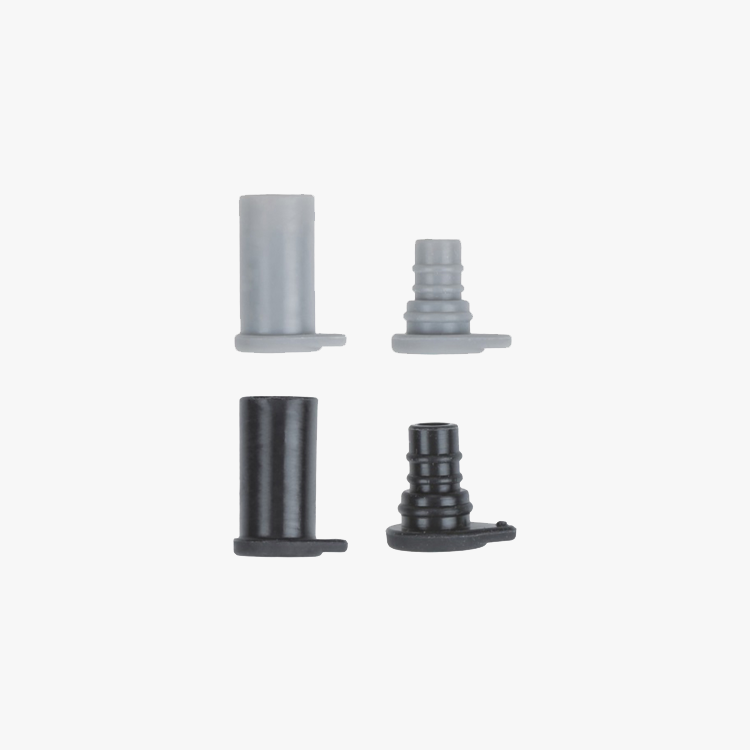

1000V 1500V MC4 Connector Anti Dust cover



1000V 1500V MC4 Connector Anti Dust cover

MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.


① Flame retardant PPO material
② Multiple styles of connectors available
③ Can connect 2.5mm2-6mm2 photovoltaic lines
④ IP68 waterproof grade, safer for outdoor use
⑤ Quality assurance of pure copper tin plated material


Model NoPV-LT008
Insulation materialsPPO/PC
Rated Current30A/50A
Rated Voltage1000VDC
Test Voltage12KV(50Hz,Imin)
Connector contact resistance<0.5mΩ
Metal conductor materialsCopper, tin plated
Protection levelIP2X/IP68
security levelII
Flame retardant gradeUL94-V0
Upper temperature limit110°c
withdrawal force≥50N
Insertion force≤50N
Temperature range-40℃ to +85℃
Adapted wire specifications1.5~10mm²(16AWG~8AWG)

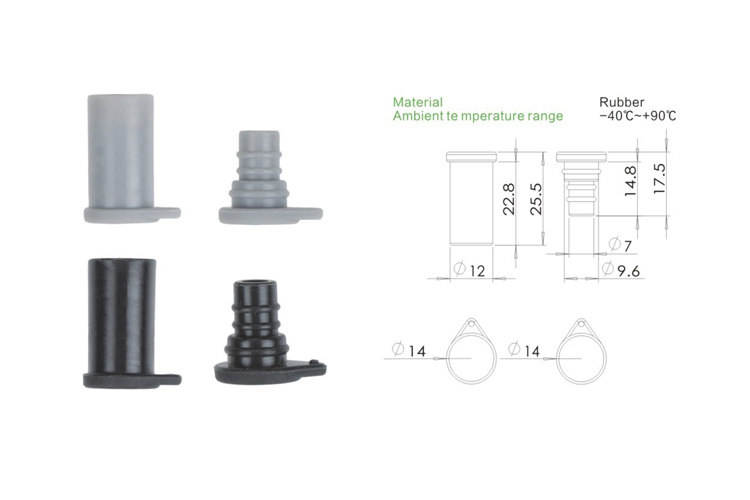

Dimensional drawing:
