LY2546B/A2546B

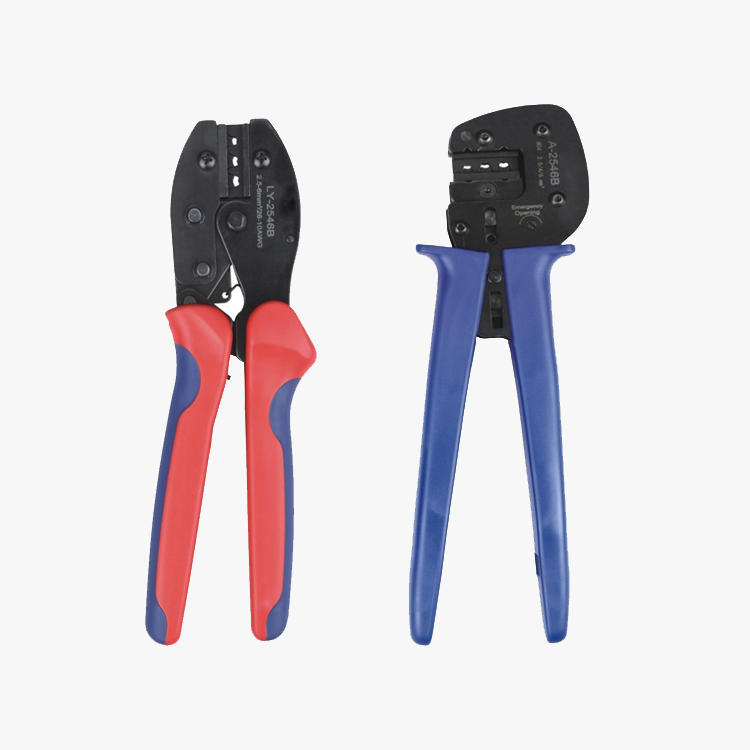

1000V 1500V MC4 Connector Crimping Tool
MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.
Feature：
① High carbon steel pliers with strong crimping ability and easy operation ② Insulated handle for safer crimping ③ Can connect 2.5mm2-6mm2 photovoltaic lines ④ Preferred installation tool for 1000V/1500V system ⑤ Rebound design, user-friendly limit switch ⑥ Operable with one hand, well-designed
Specification：
| Model No | LY-2546B/A2546B |
| Insulation materials | PPO/PC |
| Rated Current | 30A/50A |
| Rated Voltage | 1000VDC |
| Test Voltage | 12KV(50Hz,Imin) |
| Connector contact resistance | <0.5mΩ |
| Metal conductor materials | Copper, tin plated |
| Protection level | IP2X/IP68 |
| security level | II |
| Flame retardant grade | UL94-V0 |
| Upper temperature limit | 110°c |
| withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Temperature range | -40℃ to +85℃ |
| Adapted wire specifications | 1.5~10mm²(16AWG~8AWG) |
