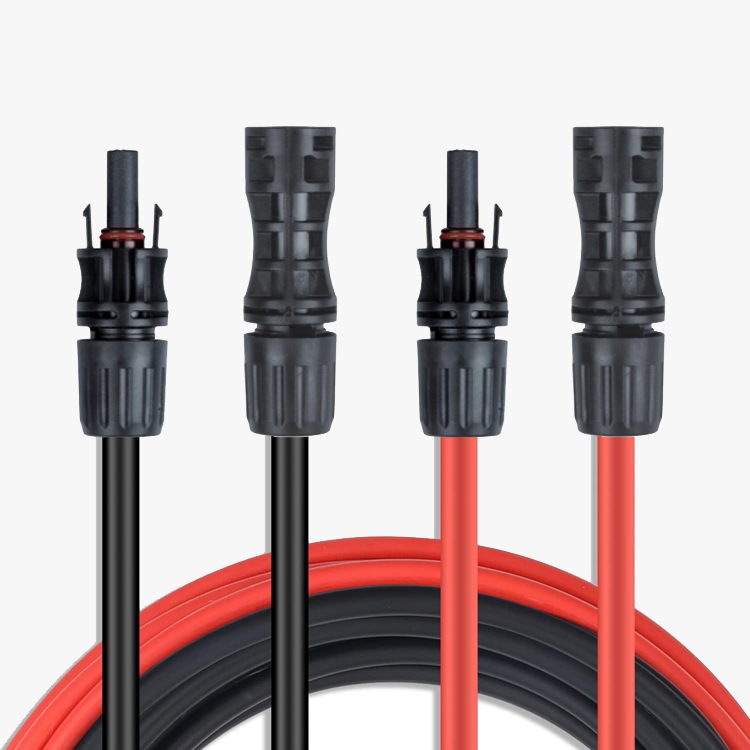

1500V 2.5/4/6mm2 MC4 Extend Cable Custom made

1500V Extend cable

Cable connectors assemble

1500V 2.5/4/6mm2 MC4 Extend Cable Custom made

MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.


① Flame retardant PPO material
② 30A | 50A current optional
③ Capable of connecting 1.5mm2-10mm2 photovoltaic lines
④ Nylon nuts are crack resistant and UV resistant
⑤ IP68 waterproof grade, safer for outdoor use
⑥ Can be interchangeable with 1500V photovoltaic MC4 connectors


Model NoPV—
Insulation materialsPPO/PC
Rated Current30A/50A
Rated Voltage1000VDC
Test Voltage12KV(50Hz,Imin)
Connector contact resistance<0.5mΩ
Metal conductor materialsCopper, tin plated
Protection levelIP2X/IP68
security levelII
Flame retardant gradeUL94-V0
Upper temperature limit110°c
withdrawal force≥50N
Insertion force≤50N
Temperature range-40℃ to +85℃
Adapted wire specifications1.5~10mm²(16AWG~8AWG)
