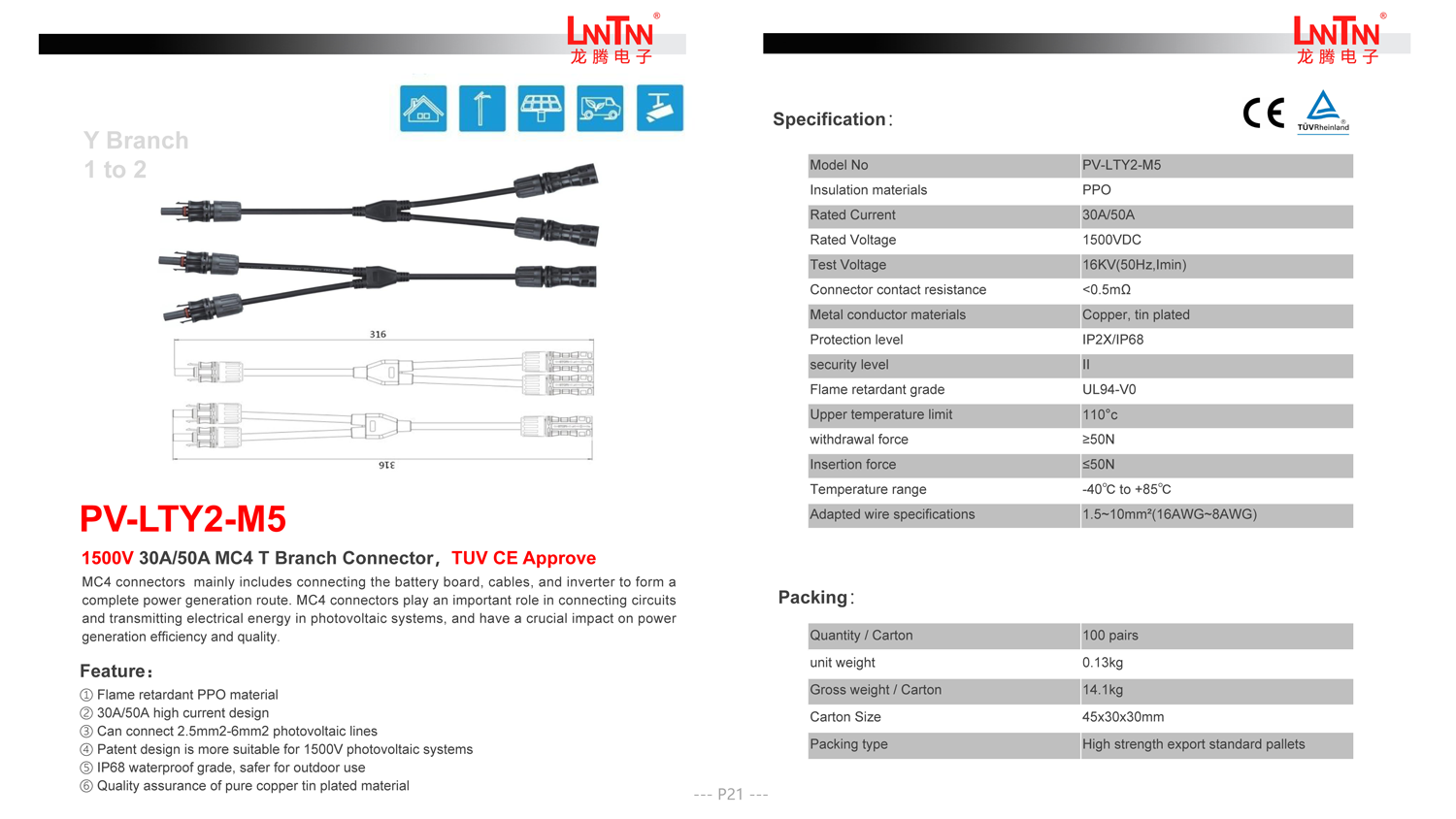

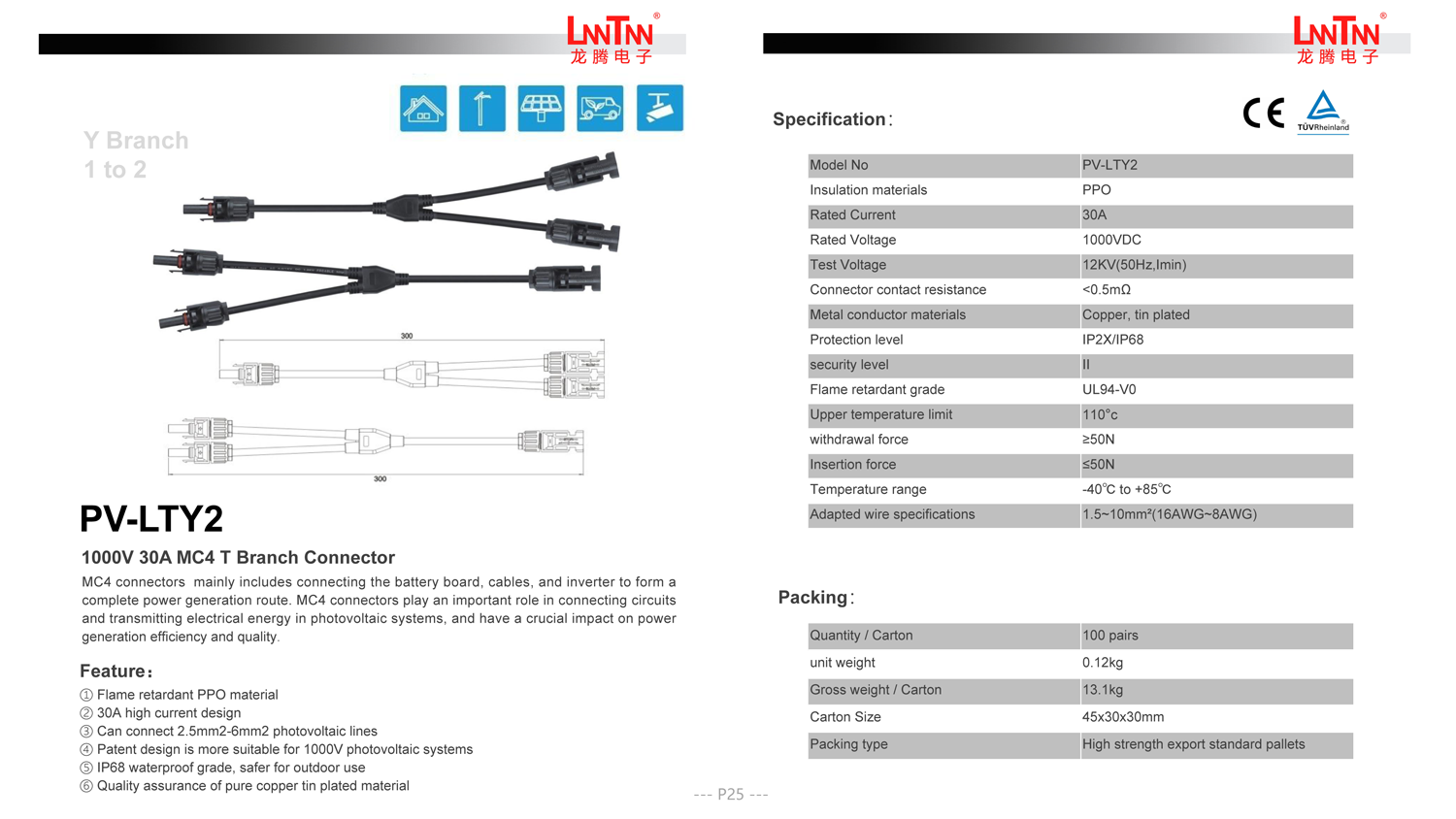

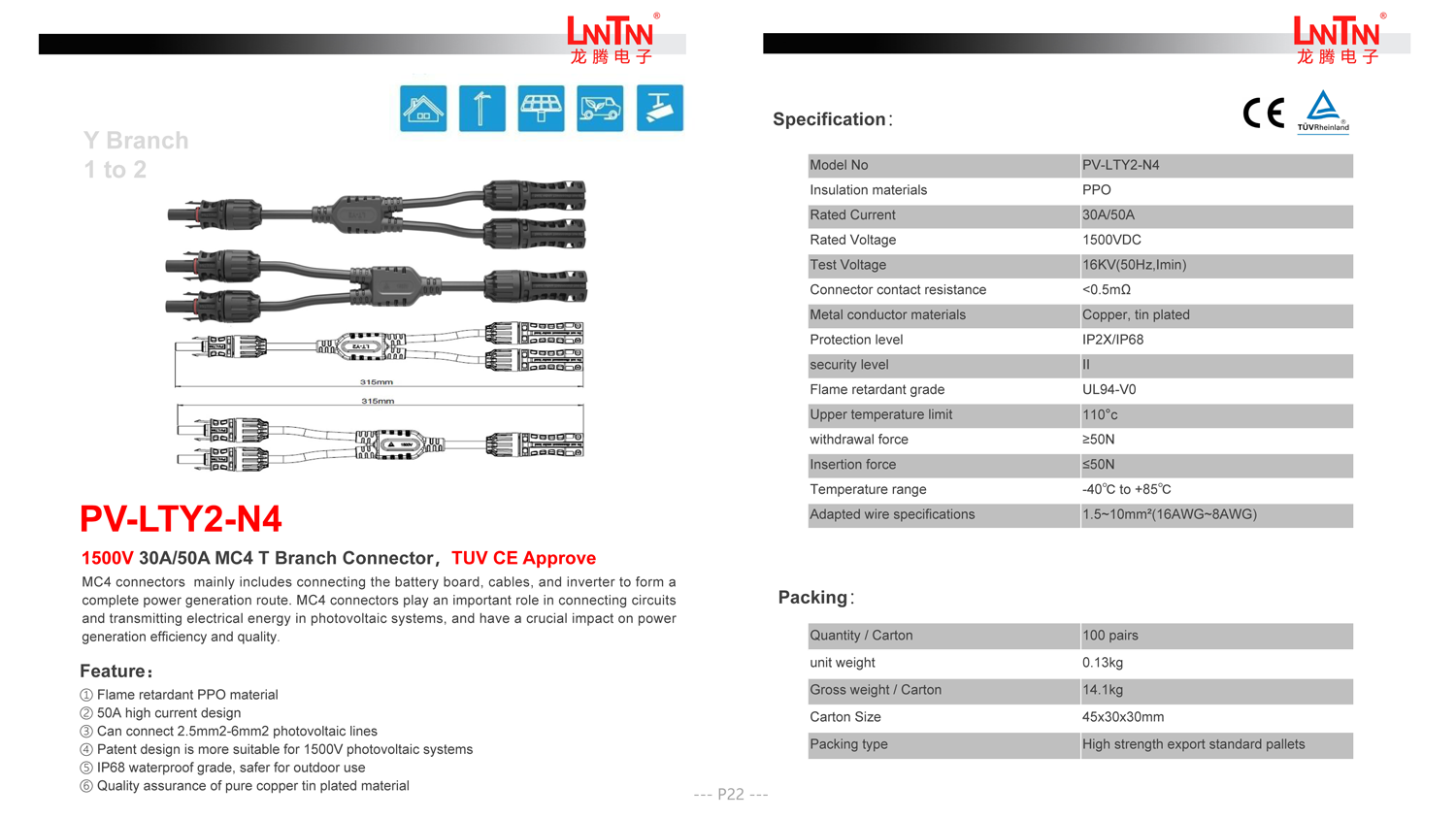

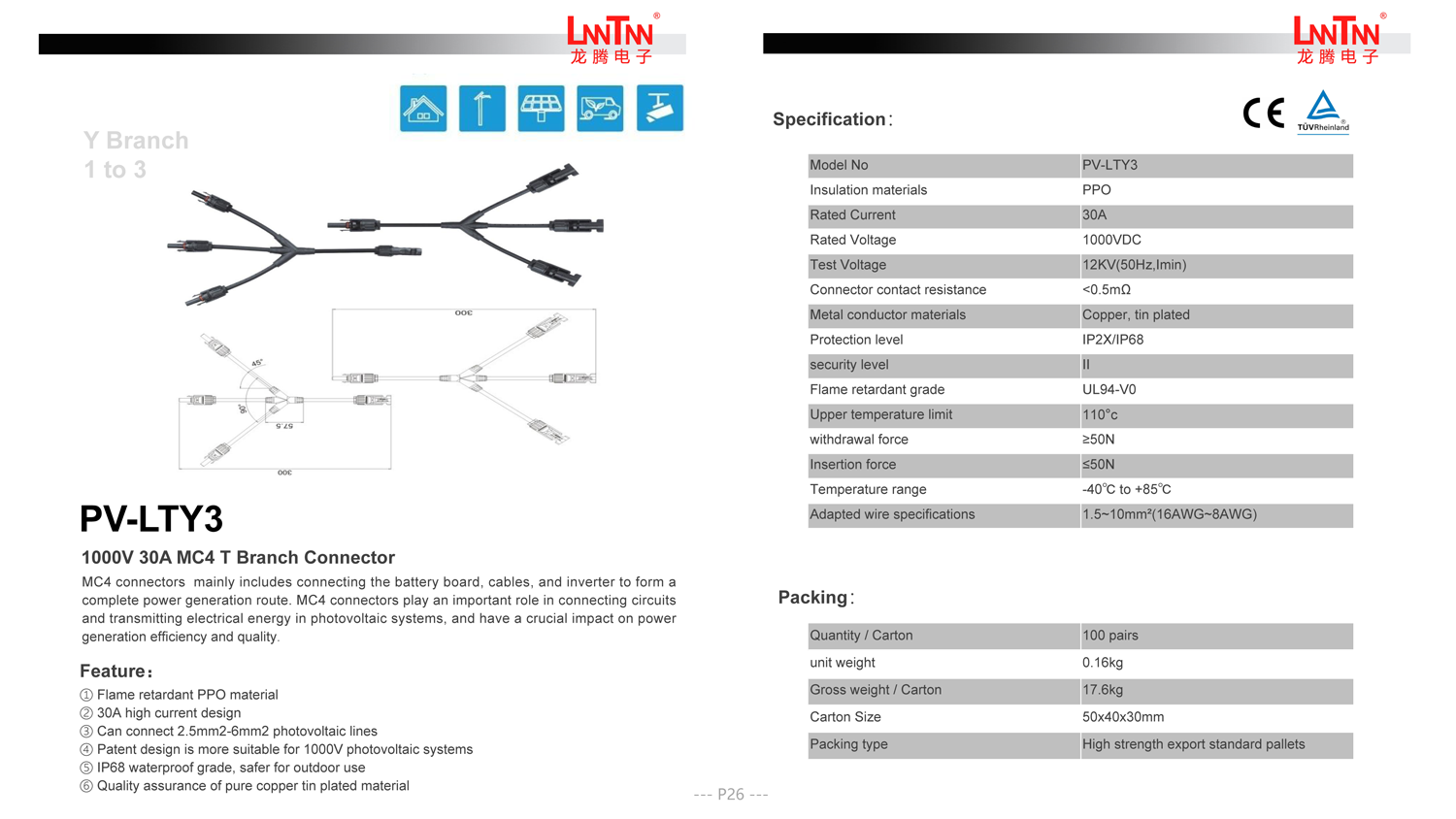

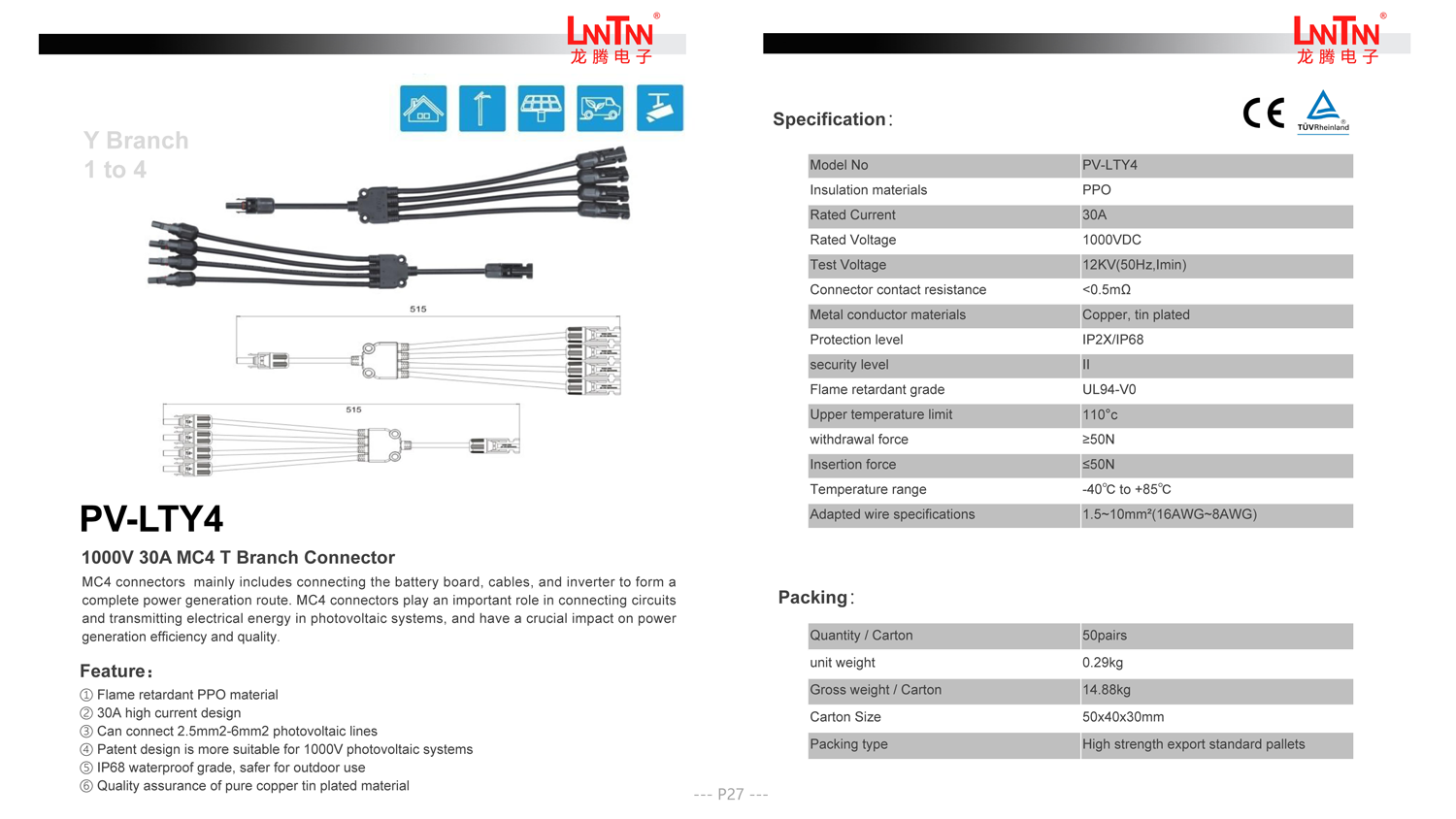

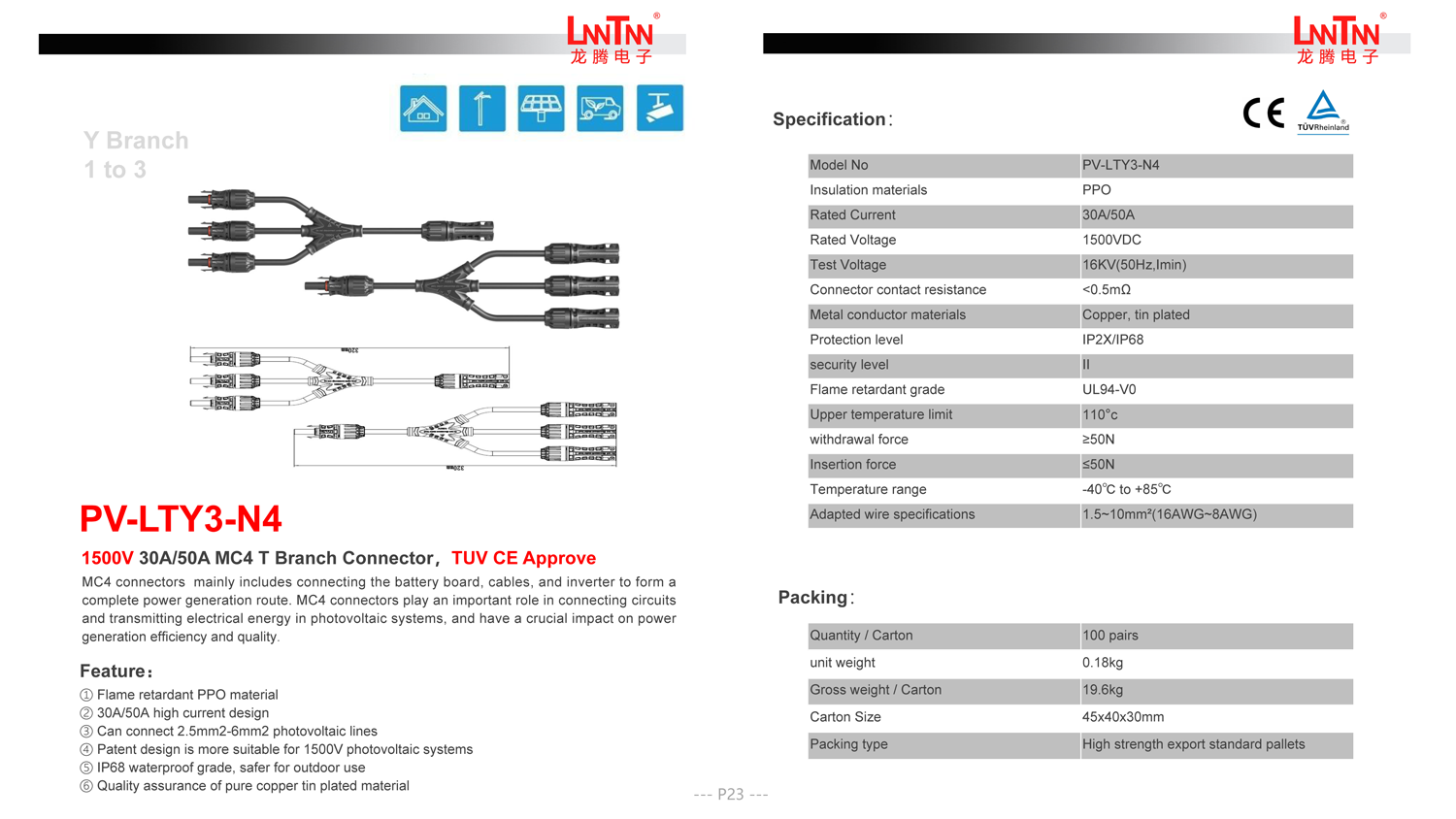

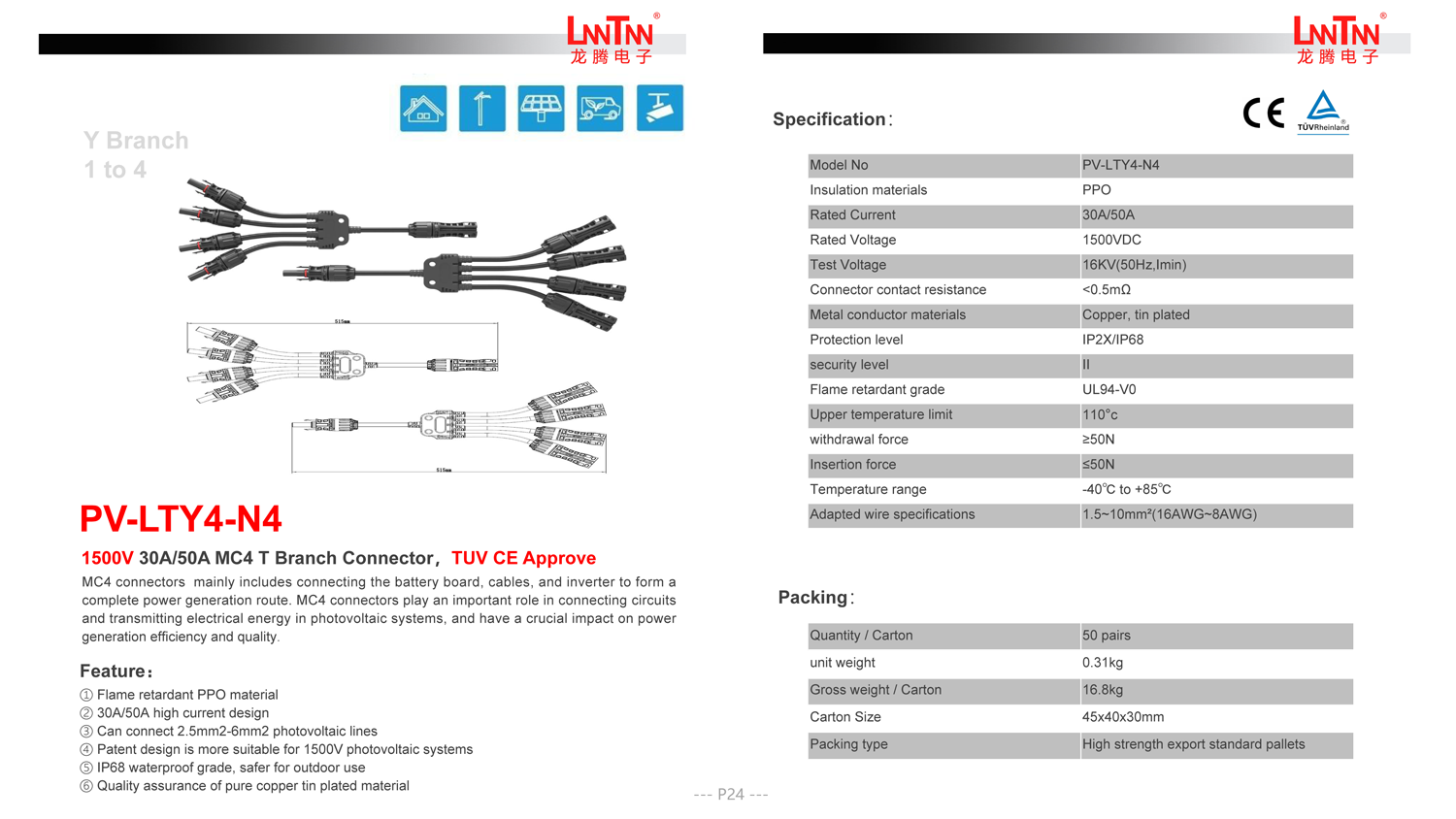

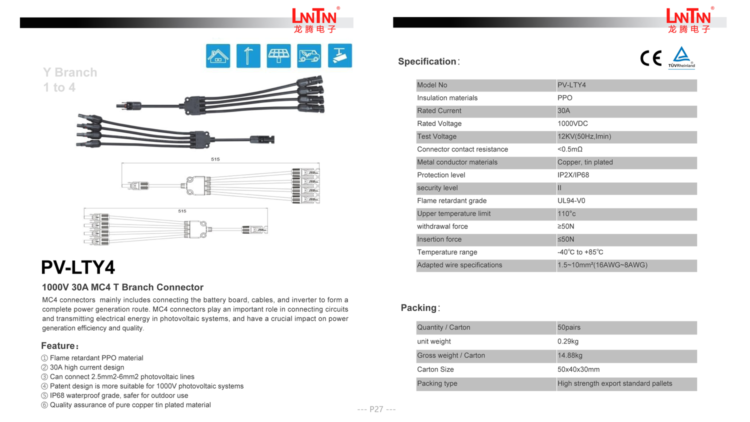

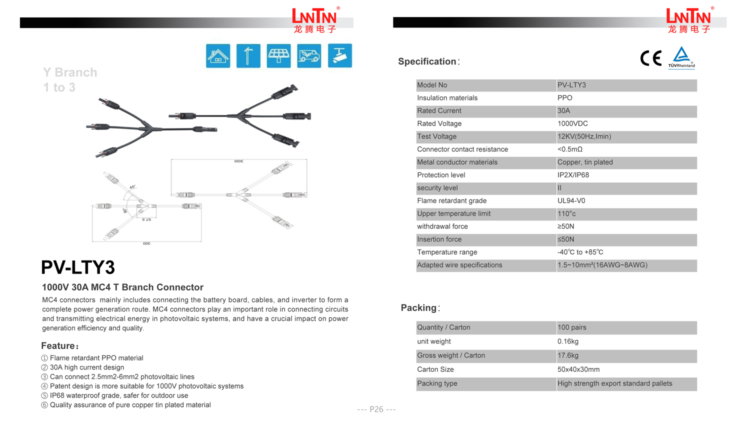

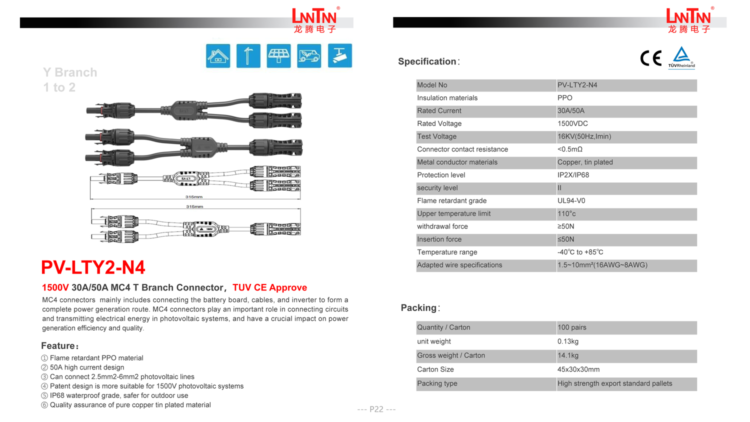

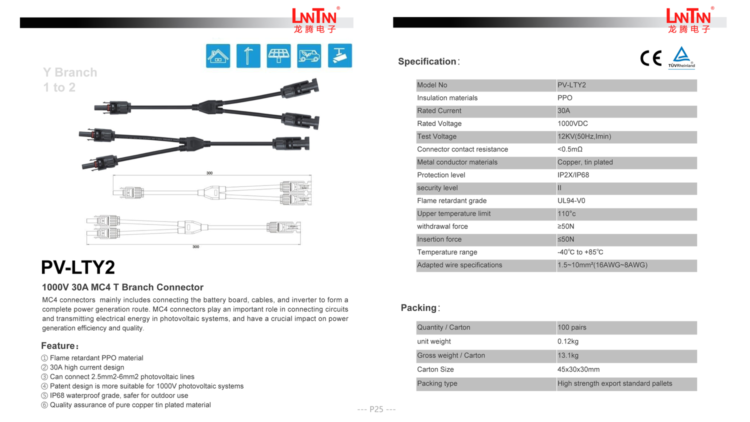

1000V 1500V 30A 50A Y Branch MC4 Connector

Why need Branch MC4 Connector?

A branch-type MC4 connector, also known as a “Y-branch” or “T-branch” connector, is a specialized component used in solar photovoltaic (PV) systems to create parallel connections between solar panels or strings of panels. These connectors allow for the branching off of connections within the system, enabling the creation of parallel circuits.

Here are some key features and considerations regarding branch-type MC4 connectors:

Branching capability: Branch-type MC4 connectors typically feature multiple ports or terminals that allow for the connection of multiple solar panels or strings of panels in parallel. They are designed to split the electrical circuit, allowing electricity to flow from one source (such as a solar panel) into multiple branches.
Design: These connectors often have a Y or T shape, with one input terminal and multiple output terminals. The input terminal is connected to the main source of power (e.g., a solar panel), while the output terminals connect to the parallel branches of the circuit.
Voltage rating: Branch-type MC4 connectors are available in various voltage ratings to accommodate the voltage requirements of different solar PV systems. Common voltage ratings include 600V, 1000V, and 1500V, depending on the specifications of the system.
Weatherproofing: Like other MC4 connectors, branch-type connectors are designed to be weatherproof, with seals and gaskets to protect the electrical connections from moisture, dust, and other environmental factors. This ensures long-term reliability and durability in outdoor installations.
Compatibility: It’s essential to ensure that the branch-type MC4 connectors are compatible with the specific solar panels, cables, and other components used in the PV system. This includes considerations such as connector type (male or female), cable gauge, and overall system design.
Installation: Installing branch-type MC4 connectors involves making secure and properly insulated connections between the solar panels or strings of panels and the connector terminals. Proper installation techniques are crucial for maintaining electrical safety and system performance.
