10A 15A 20A 30A MC4 Connector Fuse Diode

Why we need install the MC4 Connect with Fuse and Diode?

Combining a fuse or diode with an MC4 connector can enhance the safety and functionality of a solar photovoltaic (PV) system. Let’s explore each option:

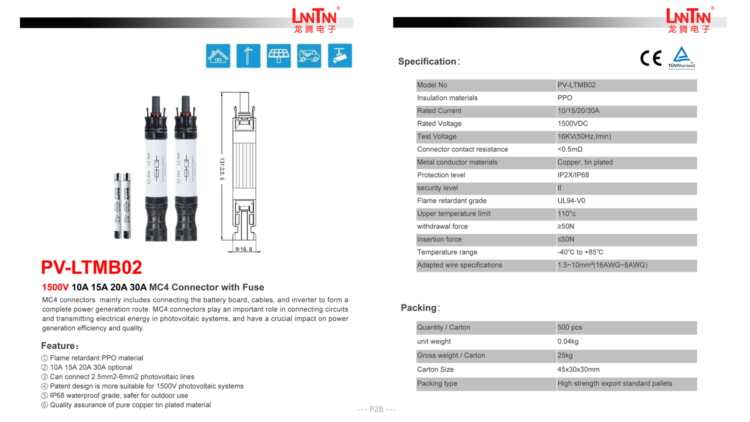

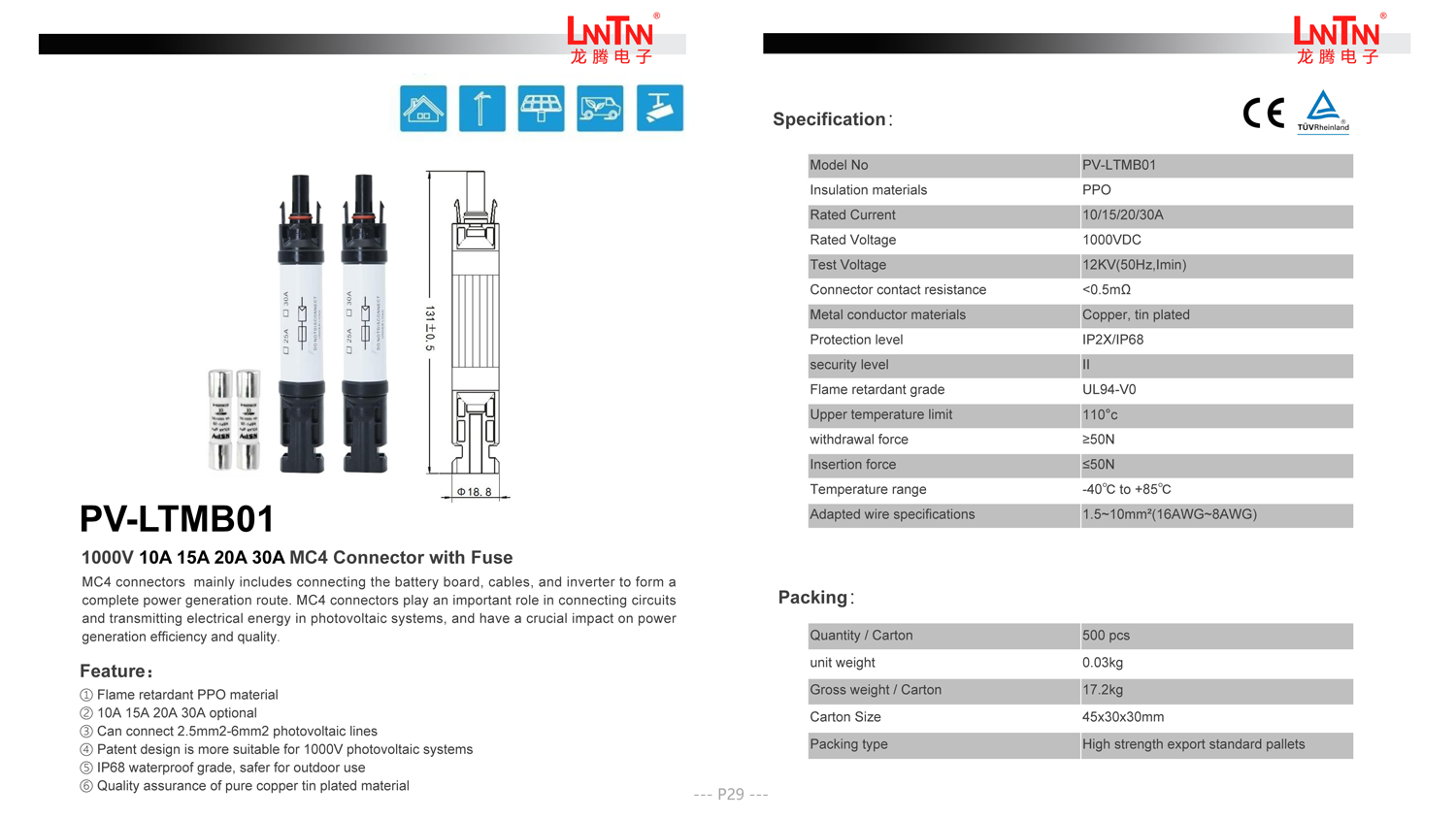

1. MC4 Connector with Fuse:

   • Functionality: Integrating a fuse into an MC4 connector adds overcurrent protection to the system. The fuse interrupts the circuit if current exceeds a safe threshold, preventing damage to system components and reducing fire hazards.
   • Placement: The fuse may be housed within the MC4 connector itself or within an attached junction box.
   • Rated current and voltage: Fuses come in various ratings, so it’s essential to select one that matches the system’s current and voltage requirements.
   • Installation: Installing an MC4 connector with a fuse involves making secure connections between the connector terminals and other system components.

2. MC4 Connector with Diode:

   • Functionality: Integrating a diode into an MC4 connector enables the prevention of reverse current flow, which can occur when solar panels are shaded or when there is a voltage difference between panels. This helps maximize the efficiency of the system by preventing power losses.
   • Placement: The diode is typically integrated into the MC4 connector itself or within an attached junction box.
   • Type of diode: Common diodes used in these connectors are bypass diodes, which allow current to flow in one direction while blocking it in the reverse direction.
   • Installation: Installing an MC4 connector with a diode involves making secure connections between the connector terminals and other system components.

Both options provide added protection and functionality to the solar PV system. The choice between a fuse and a diode depends on the specific requirements and design considerations of the system. In some cases, both may be used together to provide comprehensive protection and optimization of system performance.
