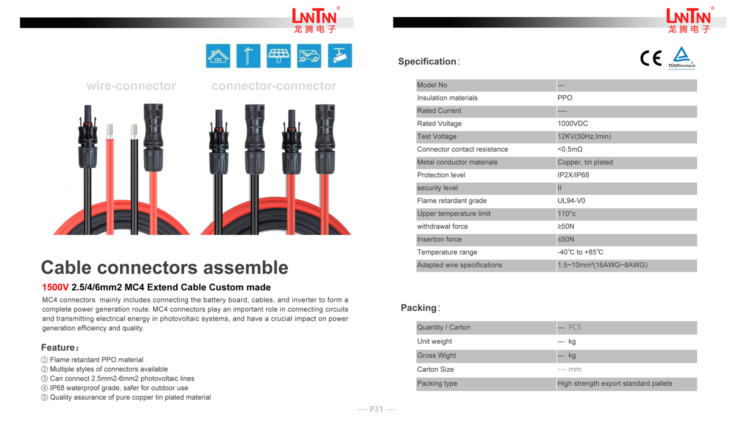

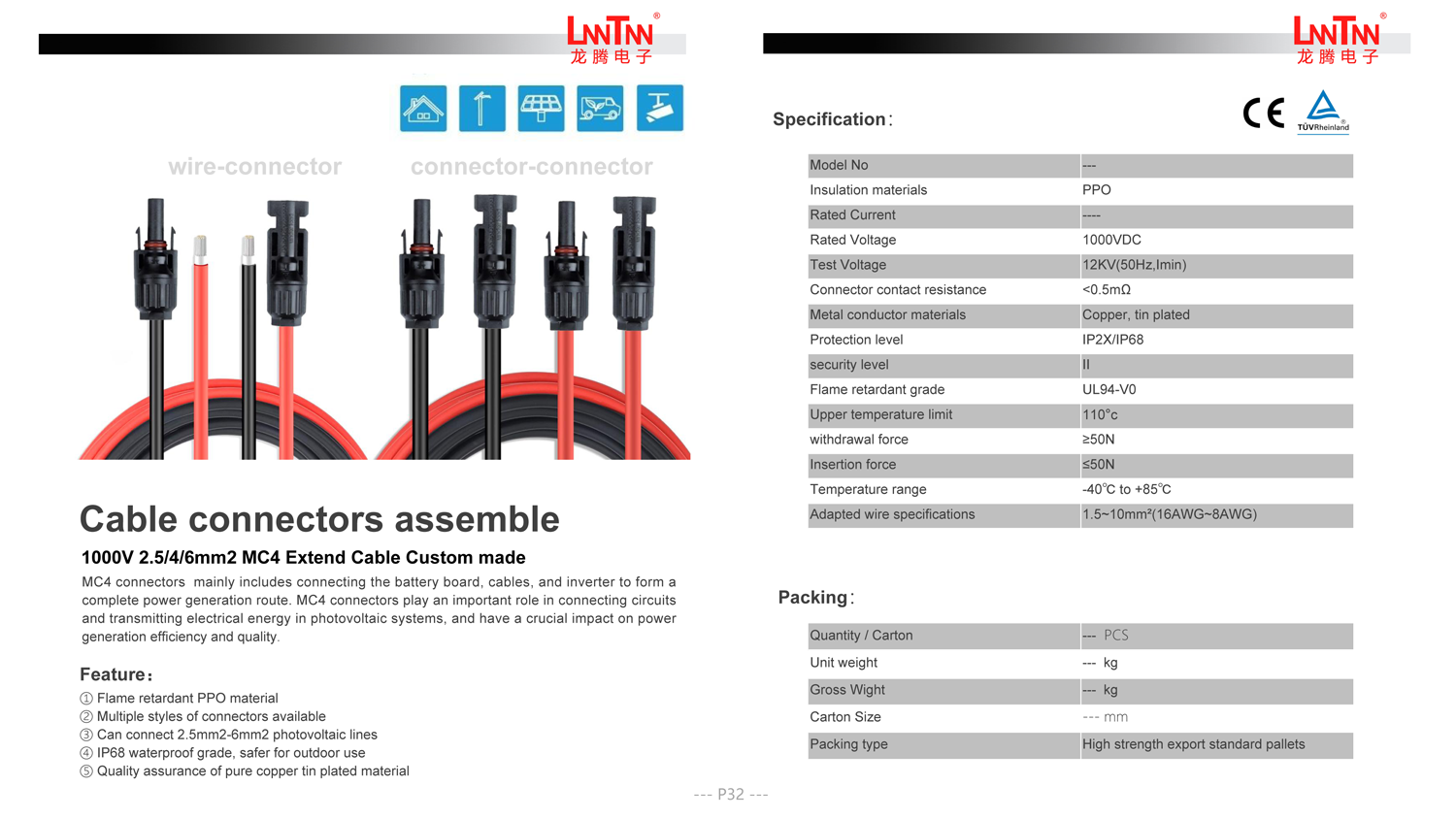

1500V 2.5/4/6mm2 MC4 Extend Cable Custom Made

Extending cables using MC4 connectors in solar panel installations is a common practice when the distance between solar panels or between the panels and other system components requires it. Here’s how it’s typically done:

  1. Assess the Distance: Determine the distance you need to extend the cables. This could be between solar panels in an array or between the panels and other components like inverters or charge controllers.

  2. Select the Cable: Choose an appropriate extension cable with the correct gauge size for the distance and current carrying capacity needed. Make sure the cable is designed for outdoor use and rated for the voltage and current levels of your system.

  3. Prepare the Cables: Cut the existing cables to the desired length if necessary. Then, strip back the insulation on the ends of the cables to expose the conductors.

  4. Install MC4 Connectors: Crimp or solder MC4 connectors onto the ends of the extension cable and the existing cables coming from the solar panels or other components. Ensure proper polarity alignment, matching the positive (+) and negative (-) terminals.

  5. Connect the Cables: Once the MC4 connectors are installed, connect the extension cable to the existing cables using the MC4 connectors. Ensure that the connections are secure and watertight to prevent moisture ingress.

  6. Seal Connections: Apply a weatherproof sealant or use waterproof heat shrink tubing to seal the connections between the MC4 connectors and the cables. This helps protect the connections from moisture and environmental damage.

  7. Test the Connections: Before powering up the system, perform a continuity test and check for proper polarity to ensure that the connections are secure and correctly made.

  8. Secure and Route Cables: Secure the cables in place using cable clips, zip ties, or conduit as necessary. Route the cables in a way that minimizes exposure to potential damage and maximizes efficiency.

By following these steps, you can extend cables using MC4 connectors in your solar panel installation effectively and safely. Always adhere to electrical codes and best practices to ensure the integrity and performance of your solar PV system.
