The PV1-F cable is a type of solar photovoltaic (PV) cable commonly used in solar power systems. Here are some key features and information about the PV1-F cable:
Design and Construction: PV1-F cables are typically designed with stranded copper conductors to facilitate flexibility and durability. They often feature cross-linked polyethylene (XLPE) insulation and a robust, sunlight-resistant outer sheath, making them suitable for outdoor use in harsh environmental conditions.
Voltage Rating: PV1-F cables are rated for use in low-voltage DC applications commonly found in solar PV systems. They are typically rated for voltages up to 1,500 volts DC, making them suitable for use in both residential and commercial solar installations.
Temperature Rating: These cables are designed to withstand a wide range of operating temperatures commonly encountered in outdoor solar applications. They typically have a temperature rating ranging from -40°C to 90°C, ensuring reliable performance in extreme weather conditions.
UV Resistance: PV1-F cables are engineered to resist degradation caused by prolonged exposure to ultraviolet (UV) radiation from the sun. The outer sheath is formulated to withstand UV exposure, ensuring the long-term reliability and durability of the cable in outdoor environments.
Compliance: PV1-F cables are often manufactured to comply with relevant industry standards and certifications, such as the TÜV (Technischer Überwachungsverein) and UL (Underwriters Laboratories) standards for solar cables. Compliance with these standards ensures the quality and safety of the cable for use in solar PV systems.
Sizes and Colors: PV1-F cables are available in various sizes (typically ranging from 1.5 mm² to 16 mm²) to accommodate different current-carrying capacities and installation requirements. They are commonly available in black or red colors for easy identification of positive and negative conductors.
Overall, PV1-F cables are a reliable and widely used option for interconnecting solar panels, inverters, and other components in solar PV systems. Their robust construction, high voltage rating, UV resistance, and compliance with industry standards make them suitable for use in a wide range of solar installations.

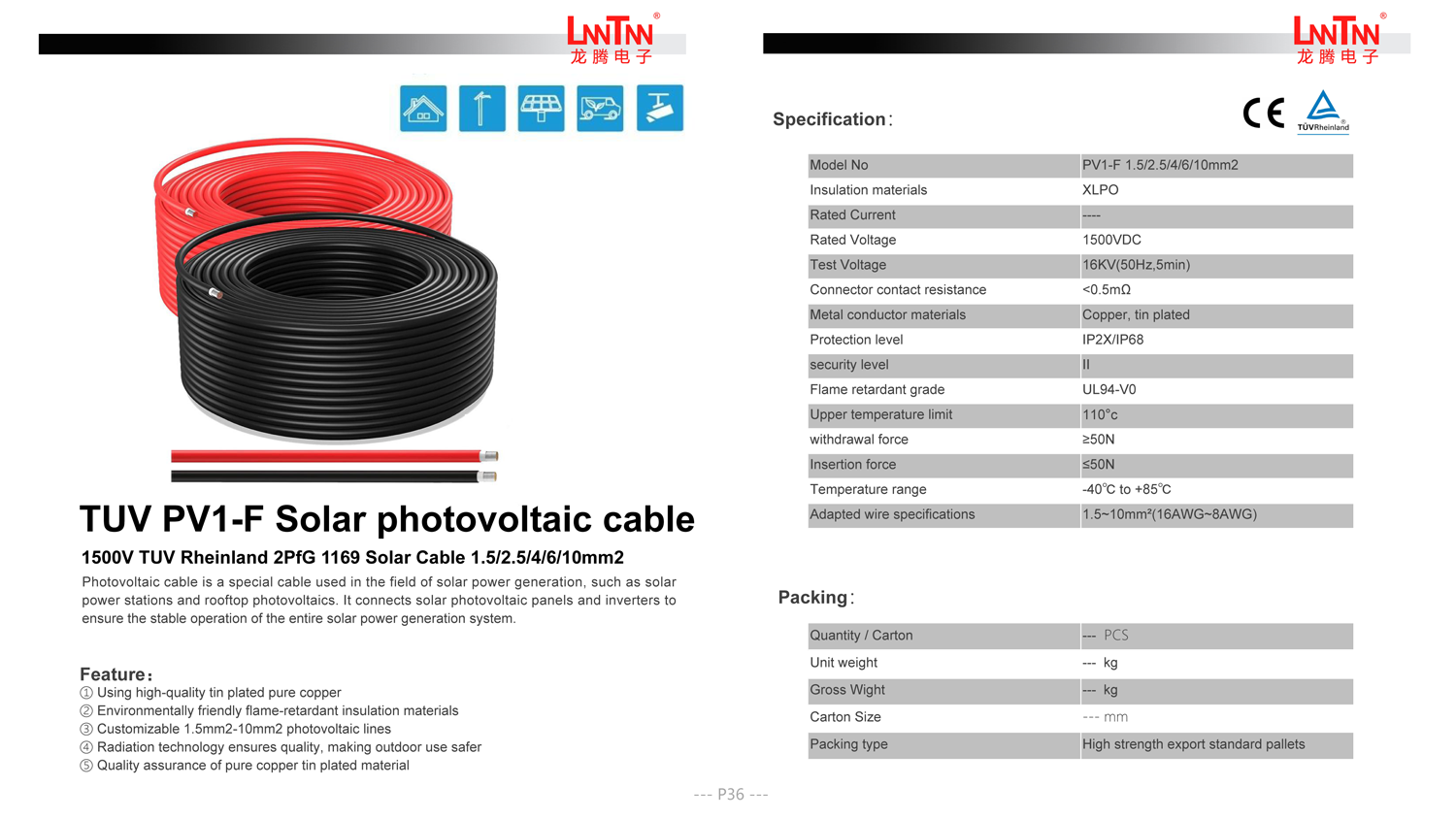

TUV PV1-F Solar photovoltaic cable
Using a parallel photovoltaic cable with black and red conductors within a single core is a common practice in solar photovoltaic installations. Here’s what this means and how it’s typically used:
Dual-Core Design: A dual-core cable contains two insulated conductors within a single outer sheath or jacket. In the case of black and red conductors, the black conductor typically represents the negative (-) polarity, while the red conductor represents the positive (+) polarity.
Purpose: The use of black and red conductors within the same core simplifies the installation process by providing a visual indication of polarity. Electricians and installers can easily identify and differentiate between the positive and negative conductors, reducing the risk of wiring errors during installation.
Color Coding: Black and red are commonly used colors in electrical wiring to denote polarity. Red is conventionally used to represent positive polarity, while black represents negative polarity. This color coding follows industry standards and is widely recognized by electricians and installers.
Compliance: Dual-core photovoltaic cables with black and red conductors are typically manufactured to comply with relevant industry standards and certifications for use in solar PV systems. Compliance ensures that the cables meet safety, performance, and durability requirements for outdoor installations.
Installation: During installation, the black and red conductors are connected to the corresponding terminals of solar panels, combiner boxes, inverters, or other system components. Proper termination and connection techniques are essential to ensure reliable and safe operation of the solar PV system.
Availability: Dual-core photovoltaic cables with black and red conductors are readily available from solar equipment suppliers and electrical distributors. They come in various sizes (gauges) to accommodate different current-carrying capacities and installation requirements.
TUV parallel photovoltaic cable
Solar aluminum alloy cables are specialized cables designed for use in solar photovoltaic (PV) systems. Unlike traditional cables that use copper conductors, these cables use aluminum alloy conductors, offering several advantages in solar installations:
Weight Reduction: Aluminum alloy cables are lighter than copper cables, making them easier to handle and install, especially in large-scale solar projects where weight can be a concern.
Cost Savings: Aluminum is generally less expensive than copper, so using aluminum alloy cables can result in cost savings for solar PV installations, especially when long cable runs are required.
Corrosion Resistance: Aluminum alloy cables are often designed to resist corrosion, ensuring long-term reliability and performance in outdoor environments where solar installations are typically located.
Conductivity: While aluminum has lower conductivity compared to copper, aluminum alloys are specifically formulated to improve conductivity and reduce electrical resistance, minimizing power losses in the solar PV system.
Temperature Resistance: Aluminum alloy cables are engineered to withstand high temperatures typically encountered in solar PV applications. They are designed to maintain their electrical properties and mechanical integrity even under prolonged exposure to heat.
Compliance: Solar aluminum alloy cables are typically manufactured to comply with relevant industry standards and certifications for use in solar PV systems. Compliance ensures that the cables meet safety, performance, and durability requirements for outdoor installations.
Durability: Aluminum alloy cables are designed to withstand mechanical stress, bending, and environmental factors such as UV radiation and moisture. They are often equipped with robust insulation and outer jackets to protect the conductors from damage.
Compatibility: Solar aluminum alloy cables are compatible with standard connectors and wiring components used in solar PV installations, making them easy to integrate into existing systems.
TUV Solar aluminum alloy cable
